Description

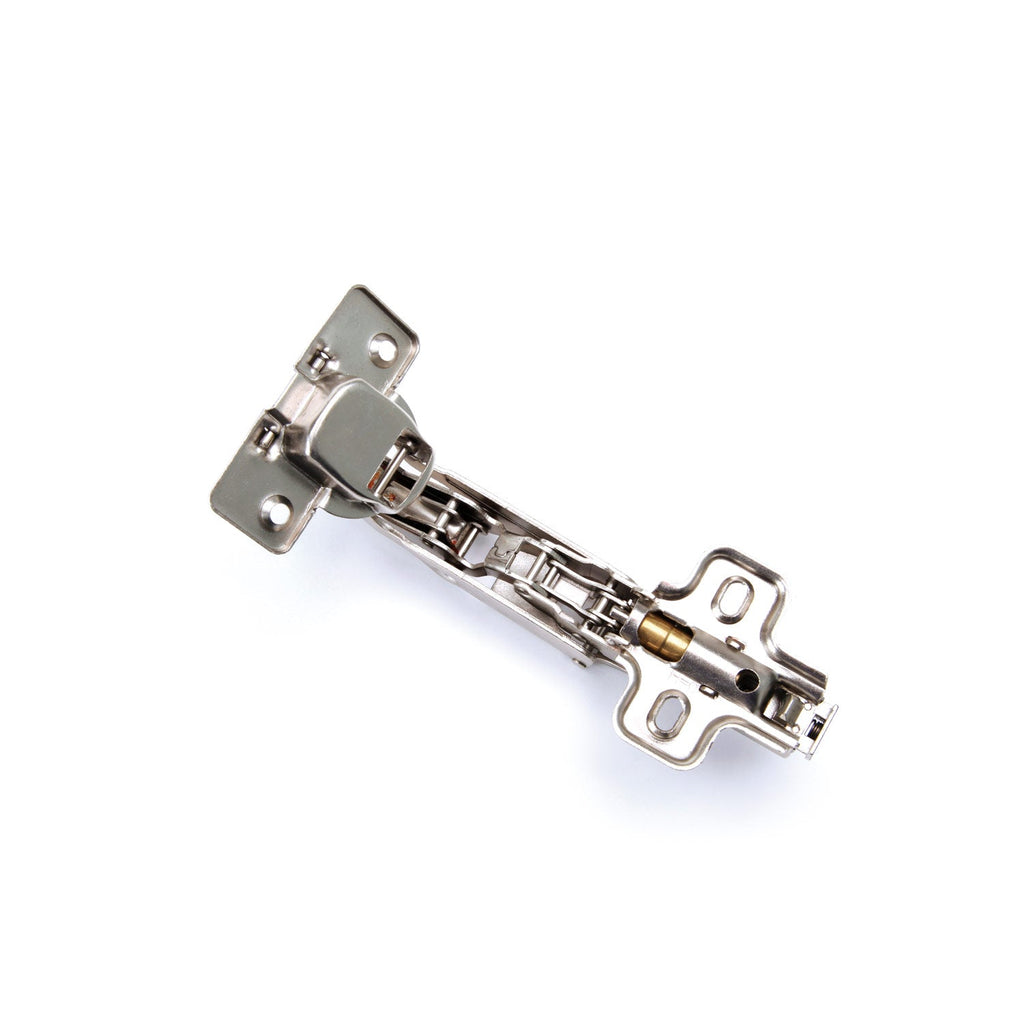

- 35mm diameter cup hinge for folding /overlapping doors opening 165º .
- It has a simple base on which the hinge is hooked by sliding .
- Ideal for furniture and cabinet doors with a thickness of 14 to 26mm.
- The facility It's simple: With a router , make a 35mm hole in the door and then screw the hinge to the furniture/closet itself and to the door itself, fitting the cup into the hole.
Data sheet

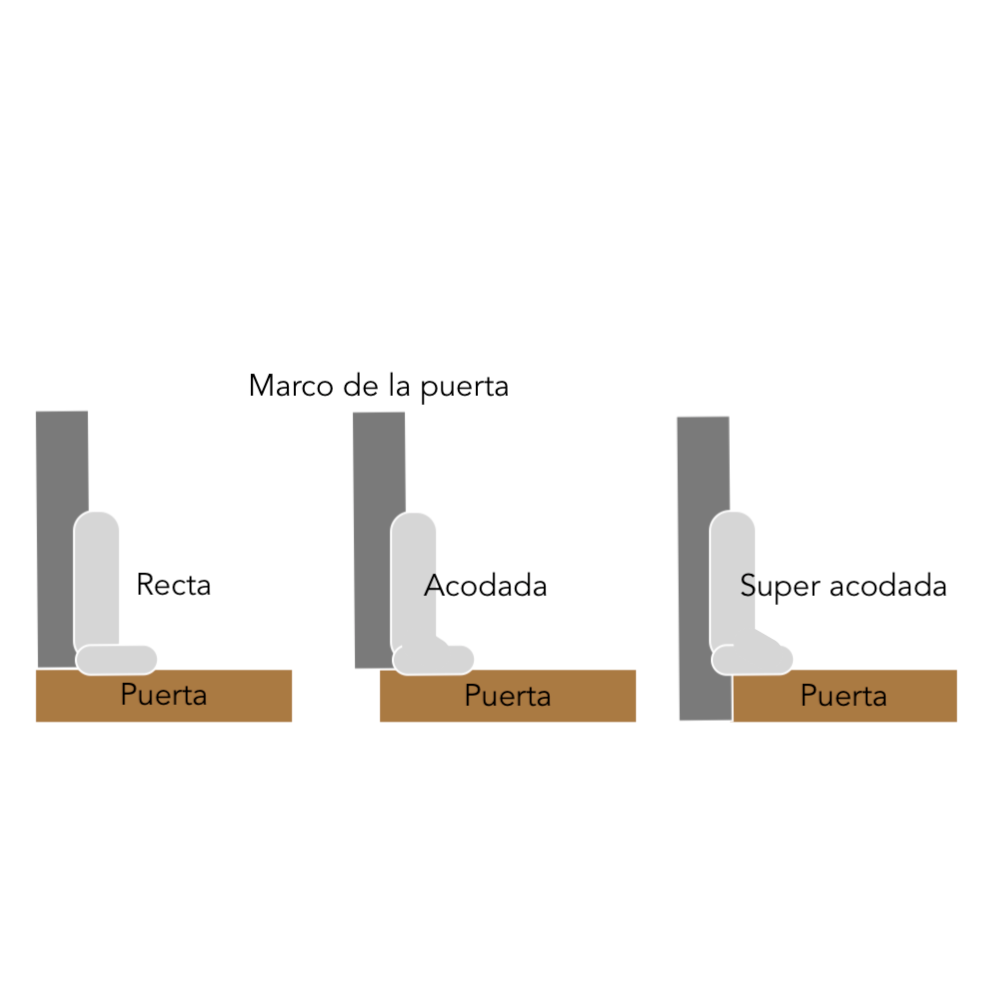

| Hinge type | Straight |
| Opening angle | 165º |
| Cup diameter | 35mm |
| Main material | Zamak |
| Finish | Nickel plated |
| Closing | Without piston |
| Base type | Simple |
| Includes tacos | No |
